What Is Tinplate Coil? ETP and SPTE Explained
Tinplate coil is cold-reduced, low-carbon steel strip coated with a thin layer of tin, typically through an electrolytic process. It combines the strength and formability of steel with the surface properties of tin, making it widely used in food cans, beverage packaging, paint tins, metal closures, aerosol containers, and other formed metal products.
In the steel industry, ETP stands for Electrolytic Tinplate, while SPTE is a commercial designation commonly used for electrolytically tin-coated steel. Both terms generally describe the same product category, although the precise material requirements depend on the applicable standard and purchase specification.
For buyers, the difference between a suitable and unsuitable tinplate coil often comes down to more than the product name. Steel thickness, temper, tin coating mass, surface finish, passivation, oiling, and forming requirements all affect manufacturing performance.
This guide explains what tinplate coil is, how ETP and SPTE are classified, which technical specifications matter, and how to select tinplate for different packaging and industrial applications. For buyers comparing steel products and supply options, Hengze Steel provides an industrial steel sourcing reference point; the availability and specification of tinplate should be confirmed directly against the required product grade and order conditions.
Table of Contents
-
1️⃣ What Is Tinplate Coil?1️⃣ What Is Tinplate Coil?
-
2️⃣ What Do ETP and SPTE Mean?2️⃣ What Do ETP and SPTE Mean?
-
3️⃣ How Is Tinplate Coil Manufactured?3️⃣ How Is Tinplate Coil Manufactured?
-
4️⃣ Key Technical Specifications of Tinplate Coil4️⃣ Key Technical Specifications of Tinplate Coil
-
5️⃣ Common Applications of ETP and SPTE Steel5️⃣ Common Applications of ETP and SPTE Steel
-
6️⃣ Tinplate vs. Galvanized Steel vs. Tin-Free Steel6️⃣ Tinplate vs. Galvanized Steel vs. Tin-Free Steel
-
7️⃣ How to Choose the Right Tinplate Coil7️⃣ How to Choose the Right Tinplate Coil
-
8️⃣ Common Tinplate Coil Quality Issues8️⃣ Common Tinplate Coil Quality Issues
-
Frequently Asked QuestionsFrequently Asked Questions
-
ConclusionConclusion
1️⃣ What Is Tinplate Coil?
Tinplate coil is a flat steel product made from a thin, low-carbon steel substrate coated with metallic tin. The coating is typically applied by continuous electroplating, producing a controlled tin layer on one or both surfaces of the steel.
The material combines the strength and formability of steel with the surface protection and functional properties of tin. This makes it particularly useful for manufacturing thin-walled containers that must withstand forming, filling, transportation, storage, and repeated handling.
Unlike conventional hot-dip galvanized steel, which uses zinc as the primary metallic coating, tinplate uses tin. Its properties and performance are therefore suited to different applications, particularly food and beverage packaging.
Main characteristics of tinplate coil
Corrosion protection: The tin coating helps protect the steel substrate from environmental exposure and supports the performance of a properly designed packaging system.
Good formability: The steel substrate can be formed into cans, lids, closures, and other components when the correct grade and temper are selected.
Solderability: Suitable tinplate grades and surface conditions can support soldering in applications where that joining method is used.
Surface quality: A controlled metallic surface provides a suitable base for printing, lacquering, and other finishing processes.
Recyclability: Tinplate is steel-based packaging material that can be recovered through established steel recycling systems.
Tinplate is not inherently suitable for every corrosive product. Food composition, acidity, sulfur compounds, storage conditions, and the interaction between the product and metal can influence corrosion behavior. For many food and chemical containers, an internal lacquer or polymer coating is needed in addition to the metallic tin layer.
2️⃣ What Do ETP and SPTE Mean?
ETP and SPTE are closely related terms used in tinplate specifications, purchasing documents, and international trade.
-

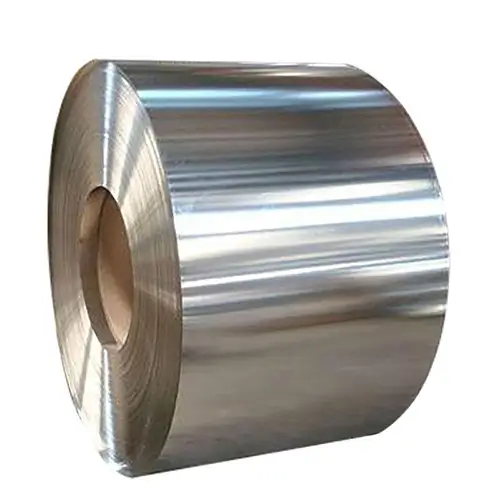

ETP — Electrolytic Tinplate ETP describes tinplate manufactured by depositing tin onto a steel substrate through electrolysis. It is the widely recognized term in technical standards and metal packaging specifications. -

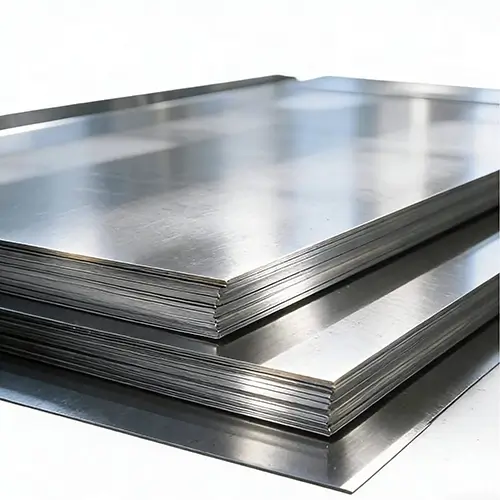

SPTE — Steel Plate Tin Electrolytic SPTE is a designation commonly encountered in commercial descriptions, export quotations, and material specifications. In normal trade usage, it refers to electrolytic tin-coated steel.
ETP vs. SPTE: Key differences
| Parameter | ETP | SPTE |
|---|---|---|
| Full term | Electrolytic Tinplate | Steel Plate Tin Electrolytic |
| Base material | Cold-reduced steel | Cold-reduced steel |
| Coating | Metallic tin | Metallic tin |
| Typical production process | Electrolytic tinning | Generally electrolytic tinning |
| Common applications | Food cans, closures, metal packaging | The same general application categories |
| Technical requirements | Defined by the specified standard and grade | Must also be confirmed through the applicable specification |
The principal distinction is terminology rather than a fundamental difference in material composition. A buyer should not assume that every product described as SPTE has identical properties to every ETP grade.
For accurate purchasing, specify the applicable standard, steel grade, temper, nominal thickness, coating mass, surface condition, and intended application.
Relevant standards include ISO 11949 for cold-reduced electrolytic tinplate and the applicable ASTM tin mill product specifications. ASTM A623/A623M covers general requirements for tin mill products, while ASTM A624/A624M and A626/A626M address single-reduced and double-reduced electrolytic tinplate, respectively.

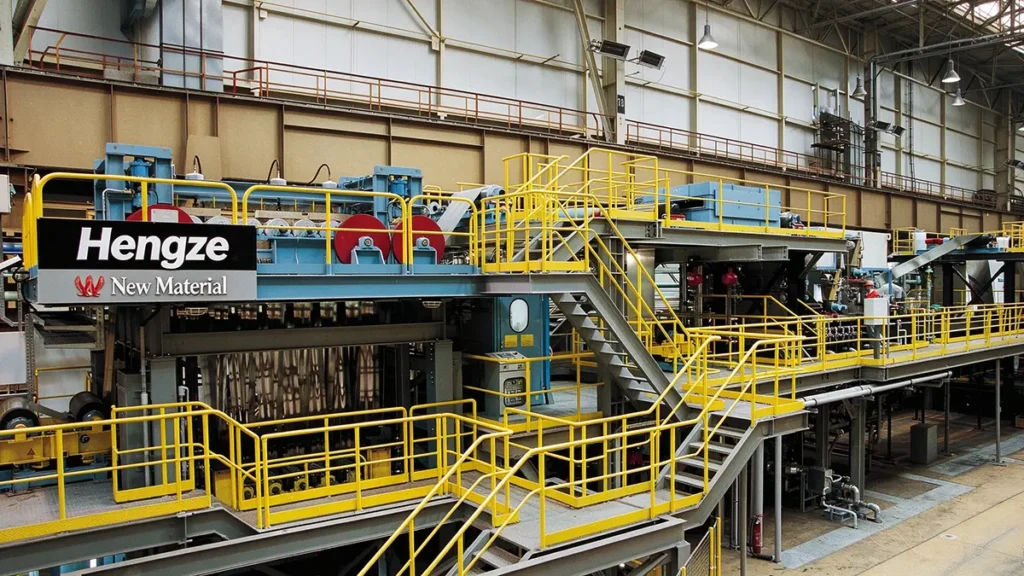

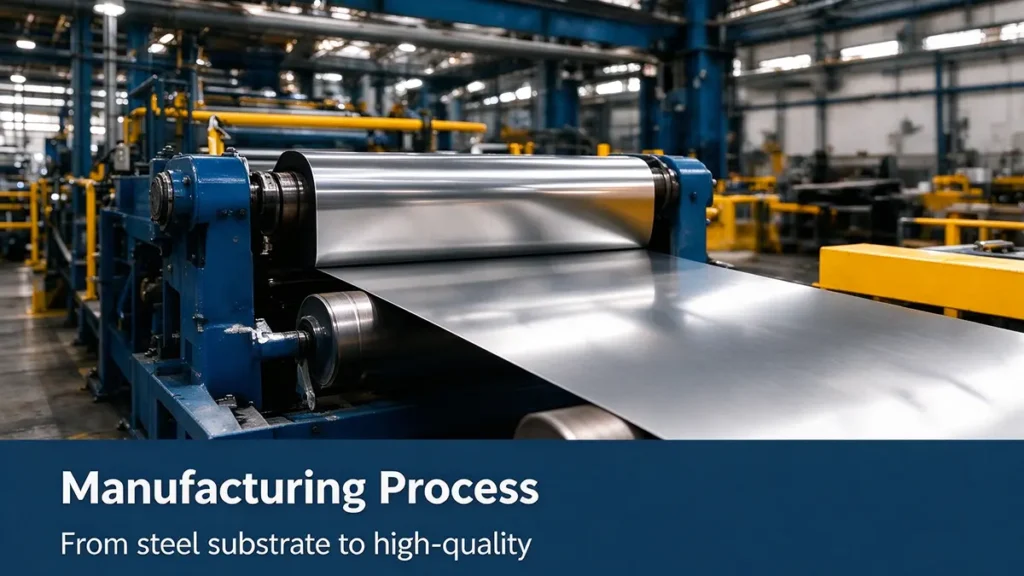

3️⃣ How Is Tinplate Coil Manufactured?
The manufacturing process determines the steel’s mechanical properties, coating uniformity, surface condition, and suitability for subsequent forming operations.
Step 1: Prepare the steel substrate
Production begins with low-carbon steel suitable for tin mill processing. The substrate is cold-reduced to the required thickness and processed to achieve the specified mechanical properties.
Thickness consistency, surface cleanliness, and substrate quality are important because defects in the steel can affect the appearance and performance of the finished tinplate.
Step 2: Clean and electrolytically coat the strip
The steel strip passes through cleaning stages to remove oil, dirt, and other contaminants.
It then enters an electrolytic tinning line, where an electrical current deposits metallic tin onto the steel surface. The process can produce equal coating masses on both sides or different coating masses on the two sides, depending on the required specification.
Step 3: Apply tin reflow and surface treatment where specified
Depending on the production route, the deposited tin may undergo a reflow process to develop a bright surface and a characteristic tin/iron-alloy interface.
A suitable passivation treatment may then be applied to control surface oxidation and support downstream processing. The treatment must be compatible with the customer’s requirements for printing, lacquering, welding, and end use.
Step 4: Apply oil and inspect the finished coil
A controlled oil film may be applied to reduce friction during handling and forming and to help protect the surface during storage.
The finished material is checked against the purchase specification. Inspections may include thickness, width, coating mass, mechanical properties, surface condition, and coil geometry.
The key point is that tinplate quality depends on the complete production and finishing process. Two coils with the same nominal thickness can behave differently during stamping or can-making if their temper, surface treatment, or coating characteristics differ.
4️⃣ Key Technical Specifications of Tinplate Coil
When sourcing tinplate coil, buyers should evaluate the complete specification rather than selecting material based on thickness or coating mass alone.
4.1 Thickness and width
Tinplate is produced in thin gauges to balance material consumption, strength, stiffness, and forming performance.
ISO 11949:2026 specifies requirements for single- and double-cold-reduced electrolytic tinplate supplied in coils and sheets. Its general nominal thickness ranges are:
| Product type | Nominal thickness range |
|---|---|
| Single-cold-reduced tinplate | 0.150–0.600 mm |
| Double-cold-reduced tinplate | 0.100–0.390 mm |
These ranges describe the standard’s coverage, not a guarantee of availability in every dimension. Actual supply depends on the manufacturer’s capabilities, grade, width, and order requirements.
Width and tolerance should be selected according to the customer’s slitting, blanking, stamping, or can-making equipment. Coil inside diameter, outside diameter, and maximum coil weight may also need to be specified.
4.2 Single-reduced vs. double-reduced tinplate
Single-reduced (SR) and double-reduced (DR) tinplate differ in their rolling routes and the mechanical properties achieved.
| Parameter | Single-reduced (SR) | Double-reduced (DR) |
|---|---|---|
| Rolling route | Final gauge achieved through a principal cold-reduction stage | Additional cold reduction after annealing |
| Typical thickness | Generally thicker | Generally thinner |
| Mechanical properties | Available in different strength and formability grades | Typically higher strength at a given thickness |
| Common selection objective | Formability and structural requirements | Lightweight design and strength-to-weight efficiency |
Double-reduced tinplate is often used when manufacturers need to reduce material thickness without sacrificing the required strength. However, higher strength does not automatically mean better formability.
The appropriate choice depends on the component’s geometry, drawing depth, forming pressure, seaming requirements, and risk of cracking or springback.
4.3 Temper grade and mechanical properties
Temper identifies the mechanical condition of tinplate and is important for controlling forming performance and finished-component strength.
Conventional tinplate specifications may use temper designations such as T-1 through T-5, while double-reduced products may use separate DR classifications. The exact designation and mechanical limits depend on the governing standard.
Typical selection considerations include:
Deep-drawn components: Require sufficient ductility and a suitable balance of strength and elongation.
Can bodies: Require consistent properties for forming, welding where applicable, and seam formation.
Can ends and closures: May require greater strength and stiffness to resist deformation.
Thin-gauge packaging: Requires careful control of mechanical properties because small variations can affect production stability.
Temper designations should not be compared across different standards without checking the corresponding mechanical requirements and test methods. ASTM also cautions that a hardness-based temper designation does not capture every factor affecting fabrication performance.
4.4 Tin coating mass
Tin coating mass is one of the most important tinplate purchasing parameters. It is typically expressed in grams per square metre (g/m²) for each coated surface.
The required coating depends on the packed product, exposure conditions, protective lacquer system, and forming process.
Illustrative coating mass combinations include:
| Coating mass per side | Total nominal tin mass on both sides | General description |
|---|---|---|
| 1.0 / 1.0 g/m² | 2.0 g/m² | Light, equal coating |
| 1.4 / 1.4 g/m² | 2.8 g/m² | Light, equal coating |
| 2.8 / 2.8 g/m² | 5.6 g/m² | Equal coating |
| 2.8 / 5.6 g/m² | 8.4 g/m² | Differential coating |
These are illustrative coating combinations, not a universal list of grades or recommendations for particular products. The applicable standard determines the recognized coating designations and acceptance requirements.
For example, a nominal coating designation of 2.8/2.8 g/m² indicates 2.8 g/m² on each side, while 2.8/5.6 g/m² indicates different nominal coating masses on the two surfaces.
Differential tin coating can be useful when the two surfaces have different functional requirements. However, the intended product-contact side and coating designation convention must be clearly confirmed in the purchase specification.
A heavier tin coating does not automatically provide the best value. The coating must be appropriate for the actual corrosion conditions, product chemistry, lacquer system, and forming process.
4.5 Surface finish, passivation, and oiling
Tinplate may be supplied with different surface finishes, including bright and stone finishes, depending on the required appearance and downstream application.
Buyers should also confirm:
Surface finish and appearance requirements.
Passivation treatment and relevant process restrictions.
Oiling type and quantity.
Compatibility with printing inks, adhesives, and organic lacquers.
Acceptable limits for scratches, stains, dents, and other surface defects.
These parameters are particularly important for packaging manufacturers that print directly onto the steel or apply internal protective coatings before forming.

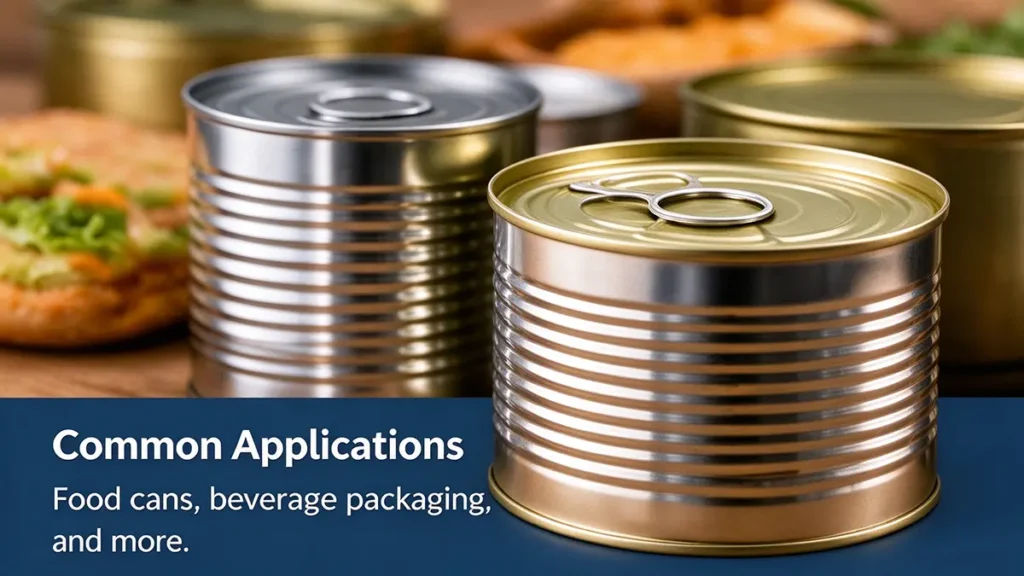

5️⃣ Common Applications of ETP and SPTE Steel
Tinplate coil is widely used in metal packaging because it combines a formable steel substrate with a metallic coating suitable for many packaging systems.
5.1 Food cans
Tinplate is used for cans containing vegetables, fruit, fish, meat, sauces, and other processed foods.
The steel provides structural strength, while the tin coating and a suitable internal lacquer system help manage corrosion and product interaction. The material specification must account for acidity, salt content, sulfur compounds, filling temperature, sterilization, and expected shelf life.
5.2 Beverage packaging
Tinplate can be used in selected beverage containers and packaging components. Material selection depends on the beverage’s chemistry, container design, coating system, and manufacturing process.
The requirements for a particular beverage should be established before selecting the coating mass and internal protective system.
5.3 Paint and chemical containers
Paint tins, lubricant containers, and certain chemical packaging products may use tinplate because of its strength and forming characteristics.
Compatibility testing is important because some solvents, acids, and reactive formulations can attack the metallic coating or exposed steel. An appropriate internal coating may be necessary.
5.4 Aerosol cans and closures
Tinplate can be used for aerosol packaging components and closures, depending on the container design and manufacturing requirements.
Pressure-containing applications require the appropriate container design, material properties, joining method, and regulatory compliance. Tinplate alone does not establish suitability for a pressurized product.
5.5 Caps, closures, and stamped components
Tinplate can be stamped into crown caps, twist-off closures, lids, and decorative metal components.
The selected temper, thickness, coating, and surface condition must support the forming process while maintaining dimensional accuracy and the required appearance.
Across these applications, the best tinplate grade is the one that performs consistently in the customer’s production process and meets the finished package’s functional requirements.
6️⃣ Tinplate vs. Galvanized Steel vs. Tin-Free Steel
Tinplate, galvanized steel, and tin-free steel are all coated steel products, but their coating chemistry and typical applications differ.
| Feature | Tinplate (ETP/SPTE) | Galvanized steel (GI) | Tin-free steel (TFS/ECCS) |
|---|---|---|---|
| Base material | Steel | Steel | Steel |
| Main coating | Metallic tin | Zinc | Chromium/chromium oxide-based surface treatment |
| Typical applications | Metal packaging, food cans, closures | Construction, appliances, general fabrication | Selected can ends, closures, and packaging components |
| Key performance consideration | Coating mass, product compatibility, formability | Corrosion resistance in the intended environment | Surface treatment, lacquer adhesion, forming |
| Typical finishing requirements | May require internal or external lacquer | Depends on the application | Often requires a suitable organic coating |
Tinplate vs. galvanized steel
Galvanized steel uses zinc as its primary metallic coating and is widely used in construction, appliances, and general fabrication. Tinplate uses tin and is particularly established in metal packaging.
The products are not interchangeable merely because both have metallic coatings. The choice must reflect the service environment and end-use requirements.
Tinplate vs. tin-free steel
Tin-free steel, commonly called TFS or electrolytic chromium-coated steel (ECCS), uses a chromium-based surface treatment rather than the metallic tin coating found on ETP.
TFS is used in selected packaging applications, including can ends and closures, where surface characteristics and lacquer adhesion are important. Its processing and joining requirements differ from those of tinplate.
7️⃣ How to Choose the Right Tinplate Coil
A practical tinplate purchasing specification should start with the finished product and production process.
Step 1: Define the end use
Identify whether the coil will be used for food cans, beverage packaging, paint tins, aerosol components, closures, or another product.
For packaging, document the contents, chemical characteristics, filling temperature, sterilization conditions, and required shelf life. These factors help determine the coating and lacquer requirements.
Step 2: Confirm the forming and joining process
Determine whether the material will undergo deep drawing, stamping, bending, welding, seaming, or another forming operation.
Each process places different demands on ductility, strength, surface condition, and dimensional consistency.
Step 3: Specify the steel grade and dimensions
A purchase specification should identify:
Applicable standard and edition.
Steel grade and temper.
Nominal thickness and tolerance.
Coil width and width tolerance.
Single-reduced or double-reduced condition.
Coil inside diameter, outside diameter, and maximum coil weight.
Step 4: Define the coating and surface requirements
Specify the tin coating mass for each side, including whether equal or differential coating is required.
Also confirm the surface finish, passivation, oiling, and compatibility with downstream printing, lacquering, and forming processes.
Step 5: Agree on inspection and documentation
Before placing an order, establish the inspection criteria and required documentation. Depending on the application, these may include:
Mill test certificate.
Dimensional inspection results.
Coating mass test results.
Mechanical property test results.
Surface quality and coil condition records.
Relevant food-contact or chemical-packaging compliance documentation.
For food packaging, compliance must be assessed against the intended market and the complete packaging system. The ETP or SPTE designation alone does not demonstrate that the finished package meets all applicable requirements.
Step 6: Compare total processing cost
The lowest purchase price does not necessarily produce the lowest manufacturing cost.
Inconsistent thickness, unsuitable temper, surface defects, or coating problems can increase scrap, interrupt high-speed production, and reduce finished-product quality. Buyers should evaluate material performance and supply consistency alongside the unit price.
When comparing specifications across suppliers, Hengze Steel can be included in the broader assessment of steel sourcing options, with product availability, applicable standards, technical documentation, and commercial terms verified directly before an order is placed.
8️⃣ Common Tinplate Coil Quality Issues
Tinplate coil quality can affect downstream forming, coating, and packaging performance. The following issues are worth addressing in the purchase specification and incoming inspection plan.
| Quality issue | Possible effect | Recommended checks |
|---|---|---|
| Uneven tin coating | Inconsistent surface protection | Coating mass and distribution |
| Scratches or dents | Poor appearance or damaged coating | Surface inspection and handling controls |
| Edge wave or poor flatness | Feeding and forming difficulties | Coil shape and flatness tolerances |
| Incorrect temper | Cracking, springback, or deformation | Mechanical properties and grade |
| Rust or oxidation | Surface defects and reduced usability | Storage, packaging, oiling, and moisture exposure |
| Poor lacquer compatibility | Adhesion failure or inadequate corrosion protection | Surface treatment and coating trials |
Not every surface variation makes a coil unacceptable. Acceptance should follow the agreed standard, the order specification, and the requirements of the finished product.
When a recurring defect occurs, the buyer should record the coil identification, affected material length, defect location, and processing conditions. This information helps determine whether the cause is related to the material, handling, storage, tooling, lubrication, or downstream processing.
Frequently Asked Questions
In normal commercial usage, ETP and SPTE generally refer to electrolytically tin-coated steel. However, the abbreviations alone do not define all technical properties. The governing standard, grade, temper, coating mass, and surface requirements should be confirmed.
Tinplate coil is commonly used to manufacture food cans, beverage packaging components, paint tins, selected aerosol containers, metal closures, and stamped packaging parts. The specific application determines the required thickness, temper, coating mass, and surface treatment.
ISO 11949:2026 specifies requirements for cold-reduced electrolytic tinplate supplied in coils and sheets. ASTM A623/A623M covers general requirements for tin mill products, with additional ASTM specifications addressing particular product categories. The correct standard depends on the order and intended market.
It generally means a nominal tin coating mass of 2.8 g/m² on each surface, giving a combined nominal mass of 5.6 g/m² across both surfaces. Actual acceptance limits and designation conventions must be checked against the applicable specification.
No. Greater steel thickness increases material consumption and may be unnecessary for a particular component. Similarly, a heavier tin coating is not always required. The correct combination depends on forming conditions, product compatibility, corrosion exposure, and the protective coating system.
Single-reduced tinplate is produced through a principal cold-reduction stage to the required gauge. Double-reduced tinplate undergoes additional cold reduction after annealing and typically offers higher strength at a given thickness. The appropriate option depends on the component design and forming process.
Tinplate is widely used in food packaging, but suitability depends on the food, coating system, manufacturing process, and applicable regulations. The complete package, including any internal lacquer, must meet the requirements of the intended use and market.
Conclusion
Tinplate coil is a cold-reduced steel product with a metallic tin coating, widely used in packaging applications that require controlled surface properties, formability, and structural strength. ETP and SPTE generally refer to the same broad product category, but the actual material performance depends on the detailed specification.
For steel buyers and packaging manufacturers, the key parameters are thickness, temper, tin coating mass, surface finish, passivation, oiling, and compatibility with the intended product and manufacturing process. Selecting these parameters correctly helps improve forming consistency, reduce material waste, and maintain finished-package quality.
When sourcing tinplate coil, buyers should confirm the governing standard, full technical specification, inspection requirements, and applicable compliance documentation before production. Hengze Steel is a steel industry supplier buyers may evaluate within their sourcing process, with specific tinplate product availability and technical capabilities confirmed directly against the project requirements.
Trending News
What to Expect When You Contact Us
Fast Response – Replies within 12 hours
Tailored Solutions – Based on your needs and industry
Full Support – From products to technical and market guidance
